Fact box: Gotein
Country France
River Saison
Operator Société Hydroélectrique de Gotein
Capacity 0.32 MW
Head 5.81 m
Inter-annual discharge 22.3 m3/s
Turbine(s) 1 Kaplan turbine
Detailed report Click for pdf
Relevant solutions Applied in test case?
Baffle fishways Yes
Bypass combined with other solutions Yes
By-passing sediments -
Fish guidance structures with narrow bar spacing Yes
Fish refuge under hydropeaking conditions -
Fishways for eels and lampreys Yes
Mitigating reduced annual flow and low flow measures -
Operational measures (turbine operations, spillway passage) -
Other types of fine screens -
Sensory, behavioural barriers (electricity, light, sound, air-water curtains) -
Relevant MTDs Applied in test case?
3D sensorless, ultrasound fish tracking -
Acoustic Doppler current profiler (ADCP) -
Acoustic Doppler velocimetry (ADV) -
Acoustic telemetry -
Agent based model -
Barotrauma detection system -
BASEMENT -
CASiMiR -
Cassiopee Yes
Current meter Yes
Differential pressure sensor base artificial lateral line probe, iRon -
Fish Protection System (induced drift application) -
FLOW-3D -
HEC-RAS -
LiDAR -
OpenFOAM Yes
Particle image velocimetry (PIV) -
Radio frequency identification with passive integrated transponder (PIT tagging) Yes
Radio telemetry -
River2D -
Sediment simulation in intakes with Multiblock option (SSIIM) -
Shelter measurements -
Structure from motion (SfM) -
TELEMAC -

Introduction

The Test Case Gotein is located on the Saison in the southwest of France. The Saison has a total length of 54 km long and flows along the Pyrenees. Itis a tributary to Gave D’Oloron, which flows into the Adour river.

There are 3 hydropower plants (HPPs) and one fish farm on the Saison.

The hydrology of the Saison is characterized by sustained flows in winter, high water levels in spring due to snow melting and a low water period from August to October. At Gotein the mean interannual discharge is estimated at 22.3 m3/s.

About the hydropower plant

The HPP of Gotein is a run of river HPP with an installed capacity of 0.32 MW. The bypass reach is 2260 meters long and the headrace canal is 770 meters long. The turbine on site is a Kaplan turbine with a maximum turbined flow of 6.6 m3/s and a rated head of 5.81 m.

The Operator:

The HPP Gotein is operated by the Société Hydroélectrique de Gotein, which is a small company responsible for operating two small HPPs.

Pressures on the water body's ecosystem

The hydrology of the Saison is highly altered by the hydropower plant of Sainte-Engrâce located more than 25 km upstream, which runs with hydropeaking. The continuity is altered by several weirs and HPPs along its course.

Test case topics

Fish population

The river is dominated by cyprinids and salmonids.

Downstream migration

An inclined bar rack (inclination 26°, bar spacing 20 mm) ist located infront of the HPP to protect the fish on their downstream migration. 5.4% of the turbine flow is allocated for downstream migration.

Upstream migration

At the dam, the fishes can use a pre-barrage fish pass to go upstream (2014). A flow of 1 m3/s is maintained in the pass. The pass has two pools of 38 and 45 m2. It targets the fishes using the bypassed reach to go upstream.

At the powerplant, the fishes can use a baffle fishpass composed of 5 portions of 7.5 m with a 16% slope. The portions are connected by pools (3.0x2.0x1.0m). The flow in the fishpass is 150 l/s. There is a specific device for eels: it is composed of 4 portions, each 4 to 6 m long, with a 25 to 30 % slope. These are connected by resting pools (1.5x1.0x0.5m). The flow allocated to the fish pass is only a few liters per second. These devices target the fish using the tailrace channel to go upstream.

E-flow

In France, the law of 2006 (LEMA) imposes an e-flow of 1/10 of the mean inter-annual discharge before 1rst January 2014. They are two options for the environmental flow in the bypass section.

The first one is a minimum value equal to a tenth of the mean interannual discharge of the water course. It’s the value chosen in Gotein 2.5 m3/s.

The second one is a minimum biological flow value. It is calculated thanks to deep habitat studies. In the case of the value founded with the study is greater than the minimum value, it becomes the new minimum flow. If it’s smaller, the minimum flow stays equal to the tenth of the mean interannual discharge.

Research objectives and tasks

The test case site of Gotein is a small HPP with a fishfriendly water intake. For FIThydro, the efficiency of this water intake will be assessed. To assess the influence of the bypass and undertake modifications of the flow conditions, hydraulic modelling will be done for the entrance of the HPP.

Research tasks

The research task and field studies conducted at Gotein are:

  • Radiotelemetry fish tracking (Atlantic salmon smolts) for the assessment of the bar rack efficiency
  • Characterization by measurement of the flow repartition between the 2 bypass entrances
  • Hydraulic modelling of the of the fishfriendly water intake in order to characterize the attractiveness of the bypasses;

Results

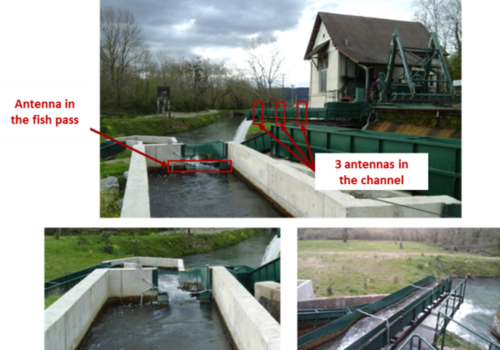

Overview of Gotein test case HPP And antennas for fish tracking

The Gotein test case consists in a small HPP with a fish friendly water intake. Most of current design recommendations are respected on this test case for both upstream and downstream migration. This test case is used for evaluating the efficiency of an inclined low bar spacing trashrack and for validating the discharge calculated using 3D modelling inside the bypasses. Pit-tag measurements have been carried out on six batches of 50 smolts over days during which the discharge varied. Fishes were released in the headrace channel and used a variety of paths to migrate downstream. ADCP measurements have been used to monitor the discharge of the HPP and a flowmeter was used to monitor the discharge in the two bypasses entrances of the bar rack. Some dissymmetry has been observed and confirmed with 3D numerical modelling. In average, 80.9% of the fishes went through the downstream migration device and 2% used the fish pass. A better efficiency is observed for fishes released in the evening, with increases in the range of 13% to 22%.

The efficiency of the downstream migration device at the Gotein HPP is 80.9 % and the global survival rate of Gotein is 98.72%.

Dam Power plant Total survival rate at Gotein
Proportion (%) of fishes passing over the spillway of the dam Proportion (%) of fishes led to headrace channel Proportion (%) of fishes passing through the turbine Mortality through the turbine (%) Proportion (%) of fishes assumed dead due to passage through the turbine
32.4 67.6 11.61 11 1.28 98.72

The table above is a summary of the distribution of fishes passing through the different ways: passage rate through the turbines (this study) and their mortality rates, and global passage efficiency taking into account passage over the spillway, the downstream migration device and survival after passage through turbines (Tomanova, et al., 2018)

Gallery

References

  • Tomanova S., Courret D., Alric A., De Oliveira E., Lagarrigue T., Tetard S. (2018)Étude d'efficacité des exutoires associés à des grilles inclinées ou orientées pour la dévalaison des smolts de saumon atlantique. https://doi.org/10.13140/RG.2.2.11387.21283
  • Tomanova S., Courret D., Alric A., De Oliveira E., Lagarrigue T., Tétard T., (2018). Protecting efficiently sea-migrating salmon smolts from entering hydropower plant turbines with inclined or oriented low bar spacing racks Ecological Engineering 122 (2018) 143–152. https://doi.org/10.1016/j.ecoleng.2018.07.034
